LMM-Track4D: Eliciting 4D Dynamic Reasoning in LMMs via Trajectory-Grounded Dialogue

Chaoyue Li1,5 Yongxue Xu2,5* Jie Feng3,5* Jiayu Ding4,5†
1Huazhong University of Science and Technology 2Sun Yat-sen University 3Beihang University 4Peking University 5InkMind.AI
*Equal contribution. †Corresponding author.
hustlichaoyue@hust.edu.cn  ·  jyding25@stu.pku.edu.cn
arXiv 2026
Paper arXiv Code

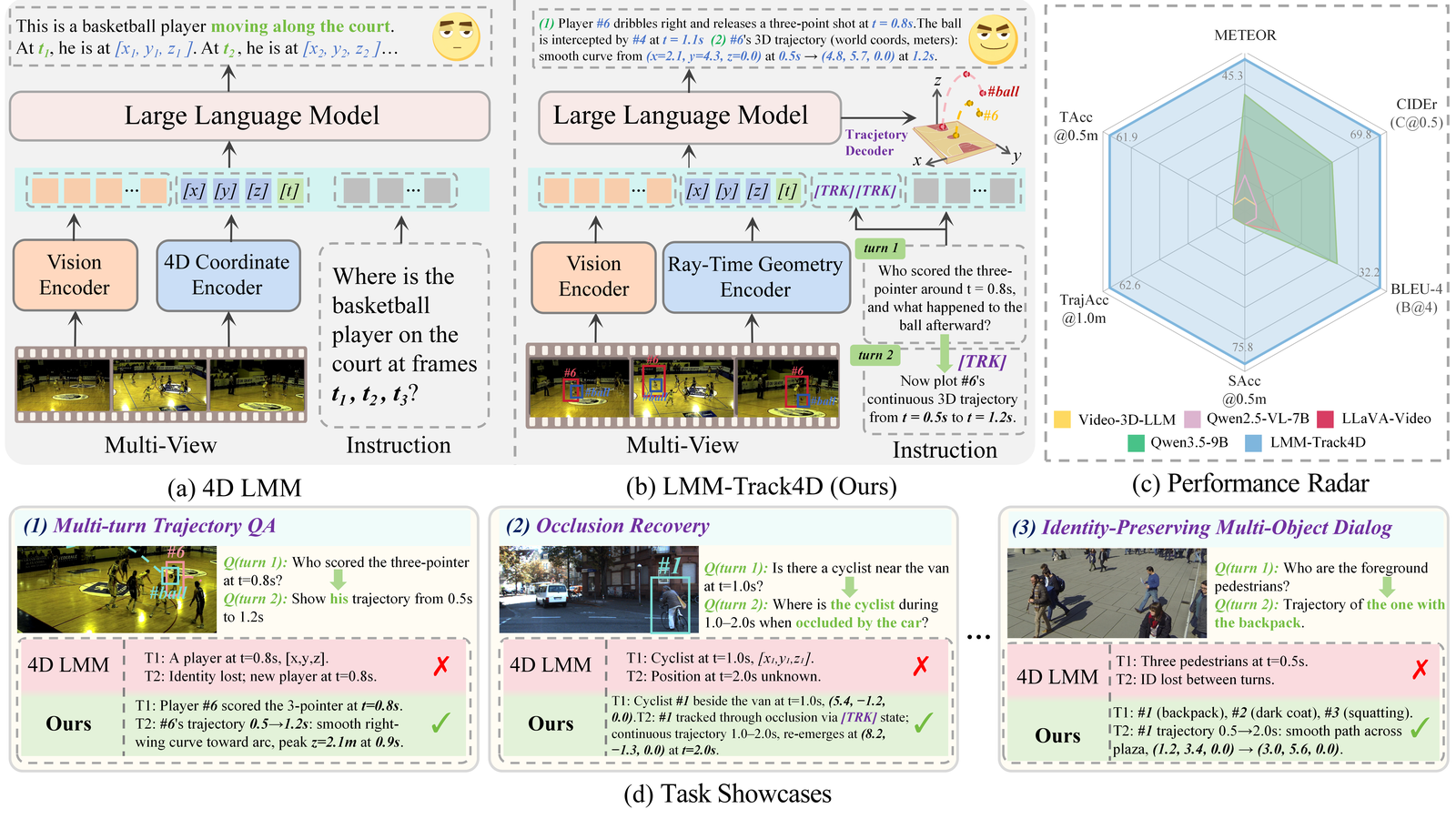

Task and model overview for trajectory-grounded multi-turn spatiotemporal dialogue
Task and model overview for trajectory-grounded multi-turn spatiotemporal dialogue. A generic 4D LMM lacks explicit geometry-grounded state maintenance, whereas LMM-Track4D adds RTGE, persistent TRK propagation, and structured trajectory decoding. Representative cases and the performance radar highlight the gap on dialogue-grounded 4D dynamic reasoning.

Abstract

Recent large multimodal models (LMMs) have become increasingly capable on image and video understanding, yet still struggle to sustain 4D continuous spatiotemporal dynamic reasoning. To study this capability gap, we formulate trajectory-grounded multi-turn spatiotemporal dialogue, a new task in which a model must answer spatiotemporal queries while returning structured 3D target trajectories over an entire short clip or a specified segment of a longer clip, and introduce Track4D-Bench, a benchmark with 526 clip-level dialogue samples spanning 23.5k frames and 7.5k object annotations, for training and evaluation.

Building on this task, we propose LMM-Track4D, which combines RTGE (Ray–Time Geometry Encoding), a dedicated streaming state token TRK for long-horizon dynamic propagation, and an Object-Slot Kinematic, Residual-Anchor (OSK-RA) decoder for stable 4-step 3D state estimation under occlusion and viewpoint variation. Experiments on Track4D-Bench show consistent improvements over strong baselines, suggesting that explicit dynamic state modeling is a useful design principle for eliciting 4D dynamic reasoning in LMMs. Our code and dataset will be publicly available at https://github.com/mikubaka88/LMM-Track4D.

Key Highlights

New Task

Trajectory-grounded multi-turn spatiotemporal dialogue couples language reasoning with explicit 3D state prediction across views and dialogue turns.

Track4D-Bench

526 auditable clip-level dialogue samples from APIDIS, KITTI, and WildTrack, with verified 3D trajectories and multi-turn supervision.

LMM-Track4D

RTGE geometry encoding, persistent TRK state propagation, and OSK-RA decoding for stable 4D dynamic state maintenance.

Strong Gains

Large improvements in dense non-keyframe inference, severe occlusion, and long-range identity preservation over proprietary and open-source LMMs.

Track4D-Bench

A query-driven benchmark for continuous 4D dynamic reasoning with auditable 3D supervision

Track4D-Bench is built through a structured pipeline—state preparation, clip formation, dialogue construction, and quality control—rather than direct raw-video prompting. It assembles 526 clip-level dialogue samples covering 23.5k frames and 7.5k object annotations, alongside verified 3D trajectories, object-centric visual evidence, synchronized keyframes, textual descriptions, and multi-turn supervision. The short-clip regime combines full-clip trajectory outputs with qualitative spatiotemporal questions, whereas the long-clip regime pairs local-segment tracking with single-moment queries.

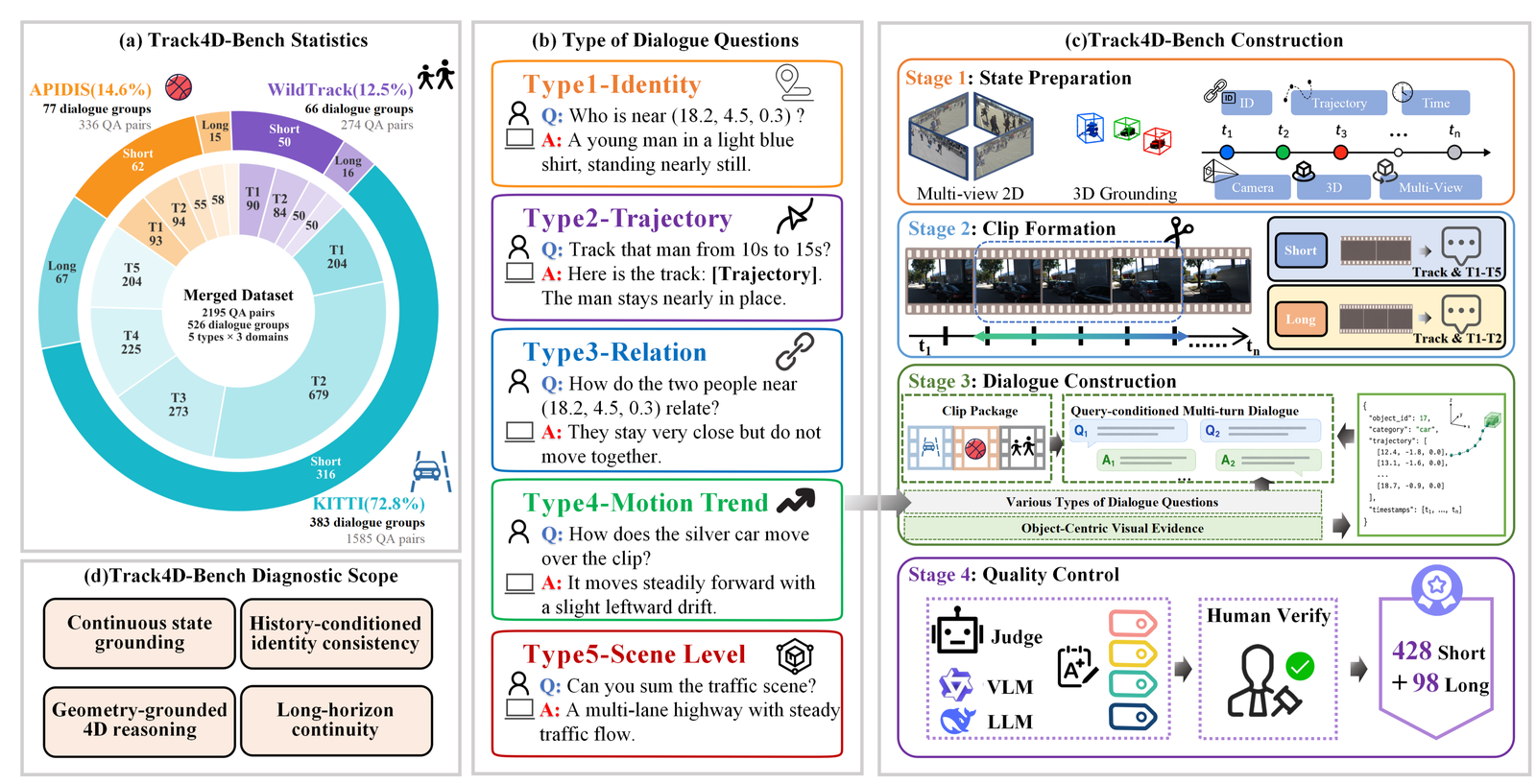

Track4D-Bench overview
Track4D-Bench overview. Benchmark scale, question taxonomy, the 3D trajectory–visual evidence–dialogue construction pipeline, and the main diagnostic axes used to probe 4D dynamic reasoning.

Table 1: Statistics of Track4D-Bench. Frame and object counts are accumulated at the clip level.

Source dataset Clips QA turns Frames Objects
APIDIS 77 336 3,904 1,154
KITTI 383 1,585 18,688 4,205
WildTrack 66 274 912 2,165
Total 526 2,195 23,504 7,524

Method Overview

Explicit dynamic state modeling across geometry, dialogue history, and 3D decoding

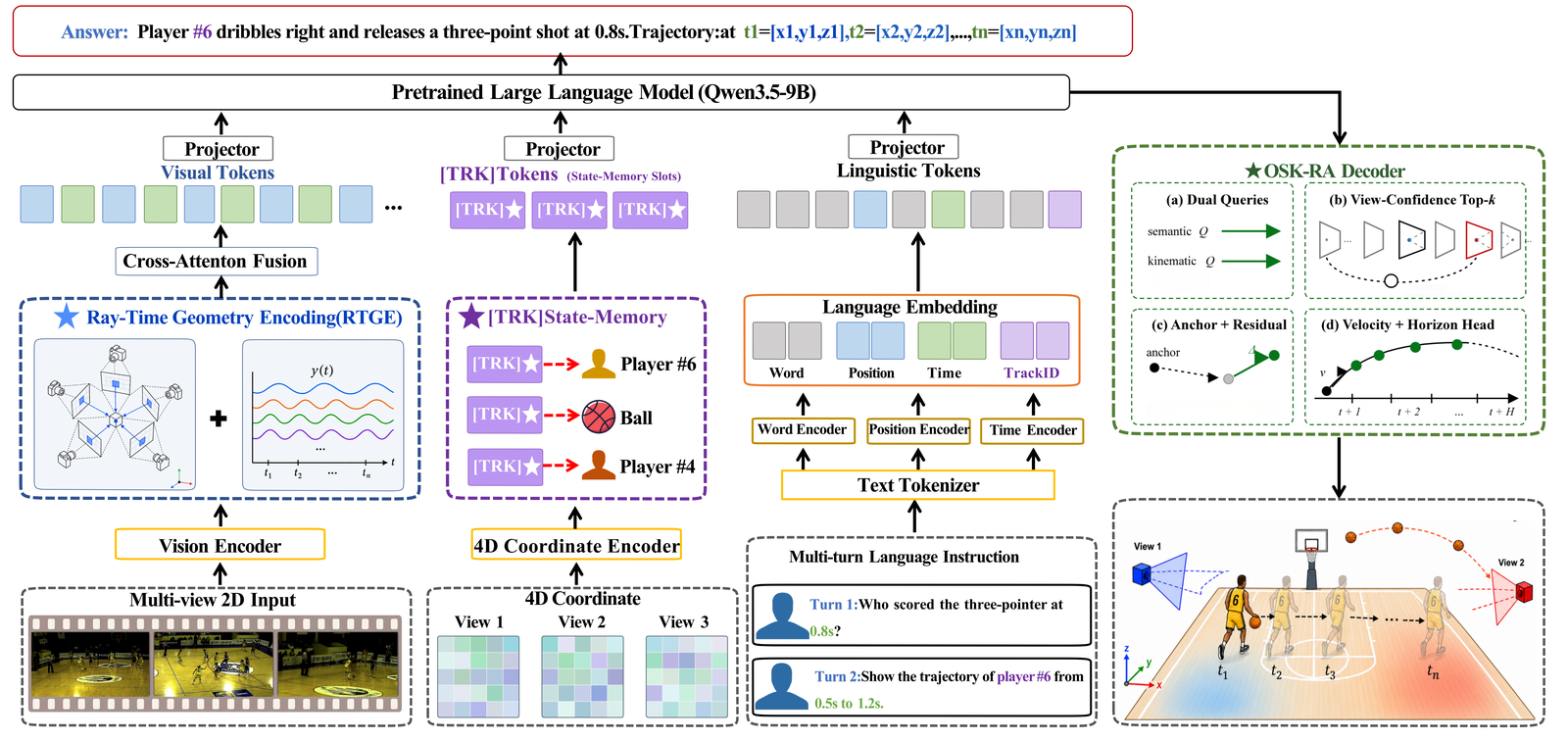

LMM-Track4D method overview
LMM-Track4D pipeline. RTGE injects ray-time geometry into visual tokens, TRK propagates target identity and motion evidence across dialogue turns, and OSK-RA decodes query-conditioned 3D trajectories from multiview observations within a unified 4D dynamic reasoning framework.
01

RTGE

Ray–Time Geometry Encoding injects Plücker ray descriptors and Fourier time embeddings into ViT patch tokens, grounding visual features in multiview geometry and physical timestamps.

02

TRK State Token

A persistent streaming state token accumulates target identity and motion evidence across dialogue turns, enabling long-horizon continuity without re-inferring from raw history each time.

03

OSK-RA Decoder

Object-Slot Kinematic, Residual-Anchor decoding separates semantic target selection from kinematic refinement, producing stable 4-step world-coordinate trajectories under occlusion.

Experimental Results

On Track4D-Bench, LMM-Track4D substantially outperforms proprietary LMMs, open-source video LMMs, and same-dataset SFT controls. Strong baselines achieve non-trivial language scores but do not provide comparable structured 3D outputs under a unified protocol. LMM-Track4D is the only model to combine strong language quality with robust geometry, reaching 0.758 SAcc@0.5, 0.626 Traj-Acc@1.0, and 0.619 TAcc@0.5.

Table 2: Complete baseline comparison on Track4D-Bench. Bold and underline denote the best and second best values; — indicates unavailable entries under the current protocol.

Method C ↑ B-4 ↑ M ↑ SAcc@0.5 ↑ Traj-Acc@1.0 ↑ TAcc@0.5 ↑
Proprietary LMMs
GPT-4o 0.246 0.132 — — — —
Gemini 2.5 Pro 0.155 0.062 — — — —
Open-source LMMs
Qwen3-VL-9B-Instruct 0.314 0.169 — — — —
LLaVA-Video 0.059 0.057 0.131 — — —
Video-3D LLM 0.000 0.000 0.030 — — —
LLaVA-3D 0.000 0.003 0.015 — — —
MLLM-4D 0.133 0.094 0.164 — — —
Same-dataset SFT controls
Video-3D LLM + SFT 0.000 0.005 0.041 — — —
LLaVA-Video + SFT 0.115 0.084 0.226 — — —
Qwen2.5-VL-7B + SFT 0.035 0.000 0.108 — — —
Qwen3.5-9B + SFT 0.451 0.220 0.348 — — —
LMM-Track4D (Ours) 0.698 0.322 0.453 0.758 0.626 0.619

Table 3: Question-type breakdown of LMM-Track4D on Track4D-Bench.

Type C ↑ SAcc@0.5 ↑ Traj-Acc@1.0 ↑ TAcc@0.5 ↑
Identity 1.274 70.0 70.0 63.6
Trajectory 0.678 87.9 78.8 77.8
Relation 0.539 100.0 81.1 89.9
Motion trend 0.420 78.8 51.5 44.4
Scene-level 0.369 — — —

Table 4: Component ablation of LMM-Track4D on Track4D-Bench.

Variant C ↑ SAcc@0.5 ↑ Traj-Acc@1.0 ↑ TAcc@0.5 ↑
Full model 0.698 0.758 0.626 0.619
w/o OSK-RA 0.631 0.588 0.500 0.425
w/o RTGE 0.579 0.714 0.571 0.482
w/o TRK 0.509 — — —
Backbone only 0.451 — — —

Qualitative Results

Dialogue-grounded 4D dynamic reasoning across sports, driving, and crowded pedestrian scenes

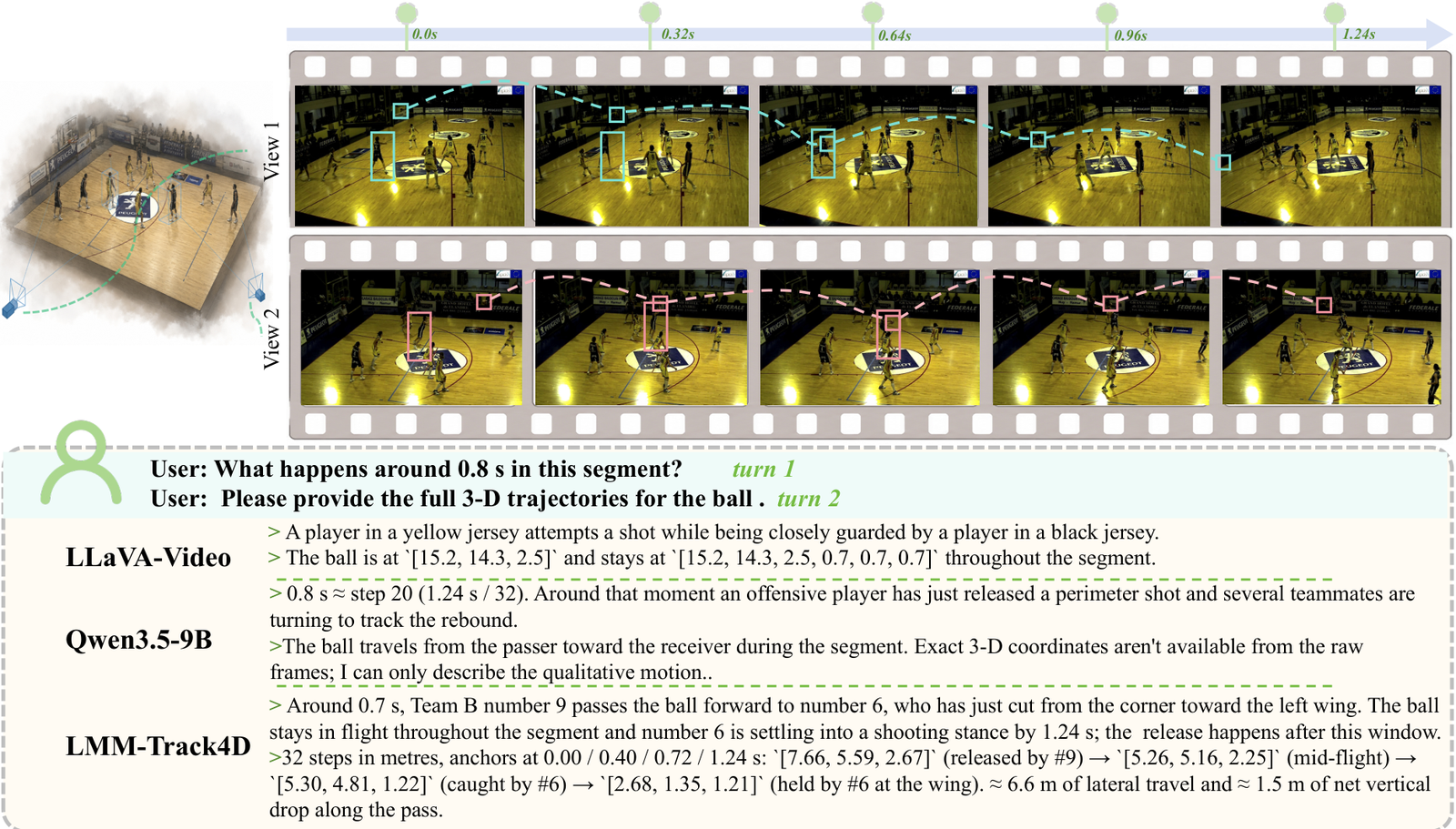

Qualitative dialogue-grounded comparison on Track4D-Bench
Qualitative dialogue-grounded comparison. LMM-Track4D correctly identifies the shooter, localizes the release moment, and recovers the 3D trajectories of the player and ball. Compared baselines are shown with dialogue responses only because they do not produce comparable structured trajectory outputs under the current protocol.

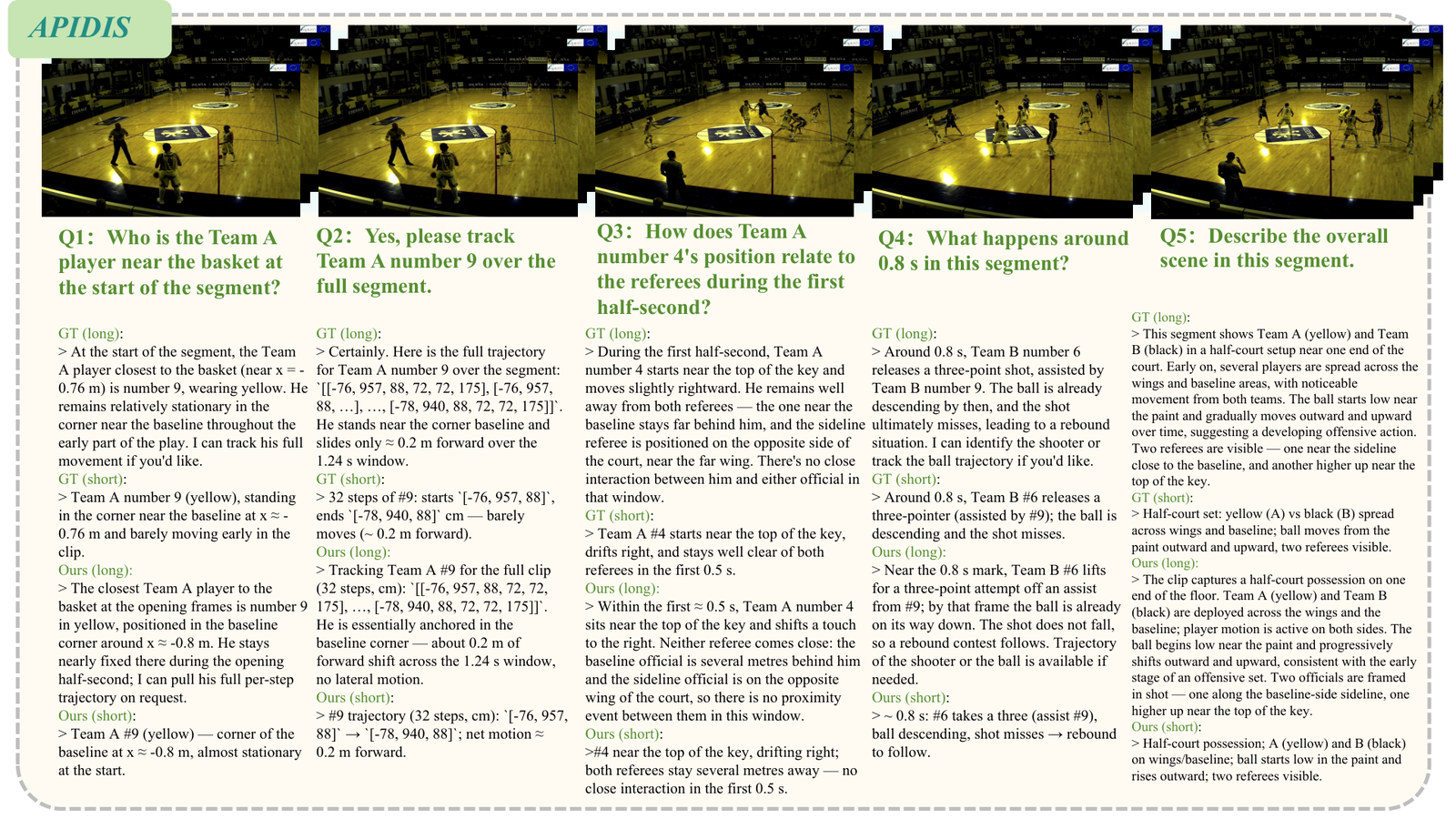

Qualitative example from APIDIS
Qualitative example from APIDIS in a crowded multi-player sports scene, requiring player-identity tracking and interaction reasoning under occlusion.

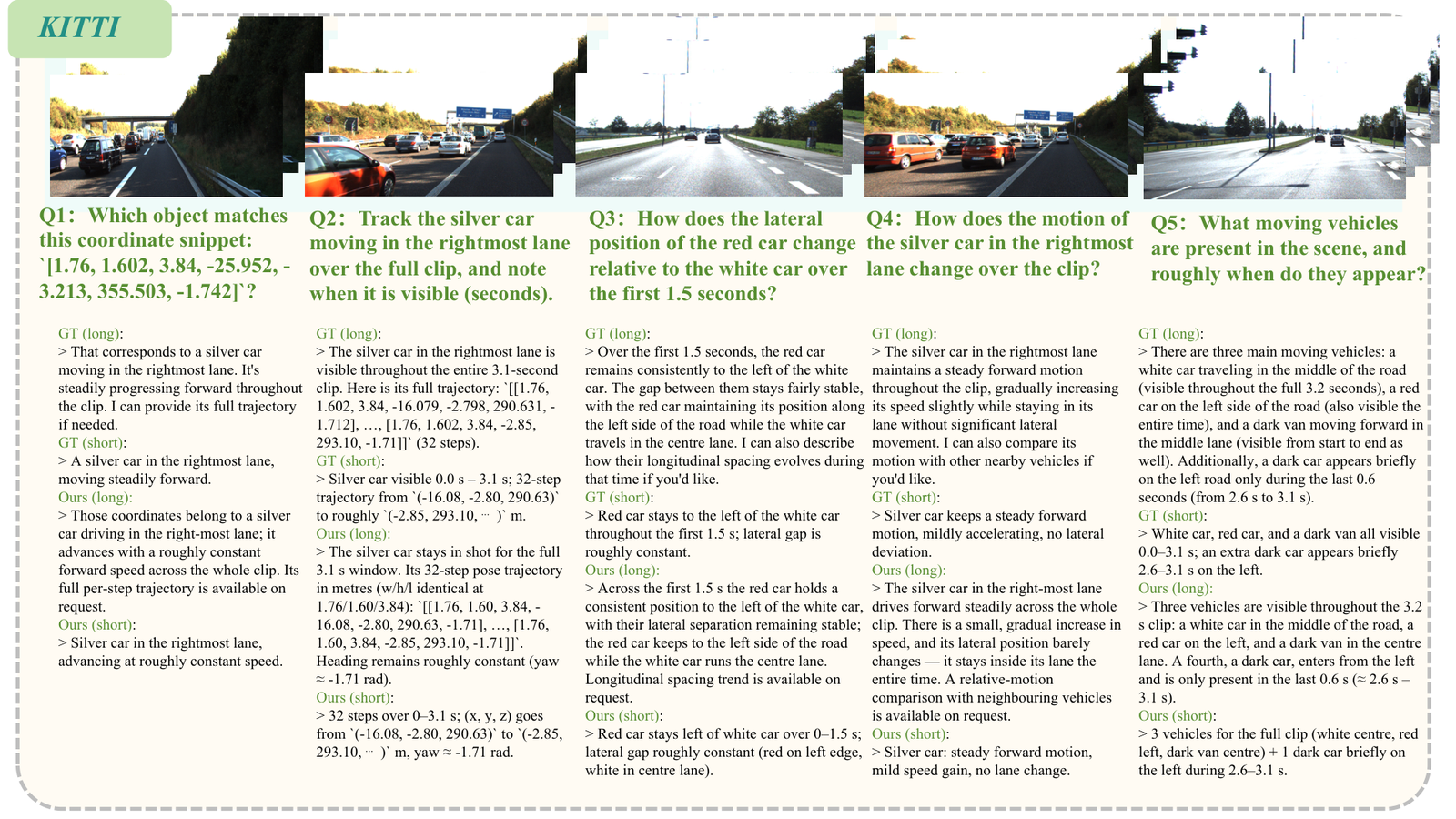

Qualitative example from KITTI
Qualitative example from KITTI in a street-driving scene, requiring object-identity tracking and evolving spatial-state reasoning under ego motion.

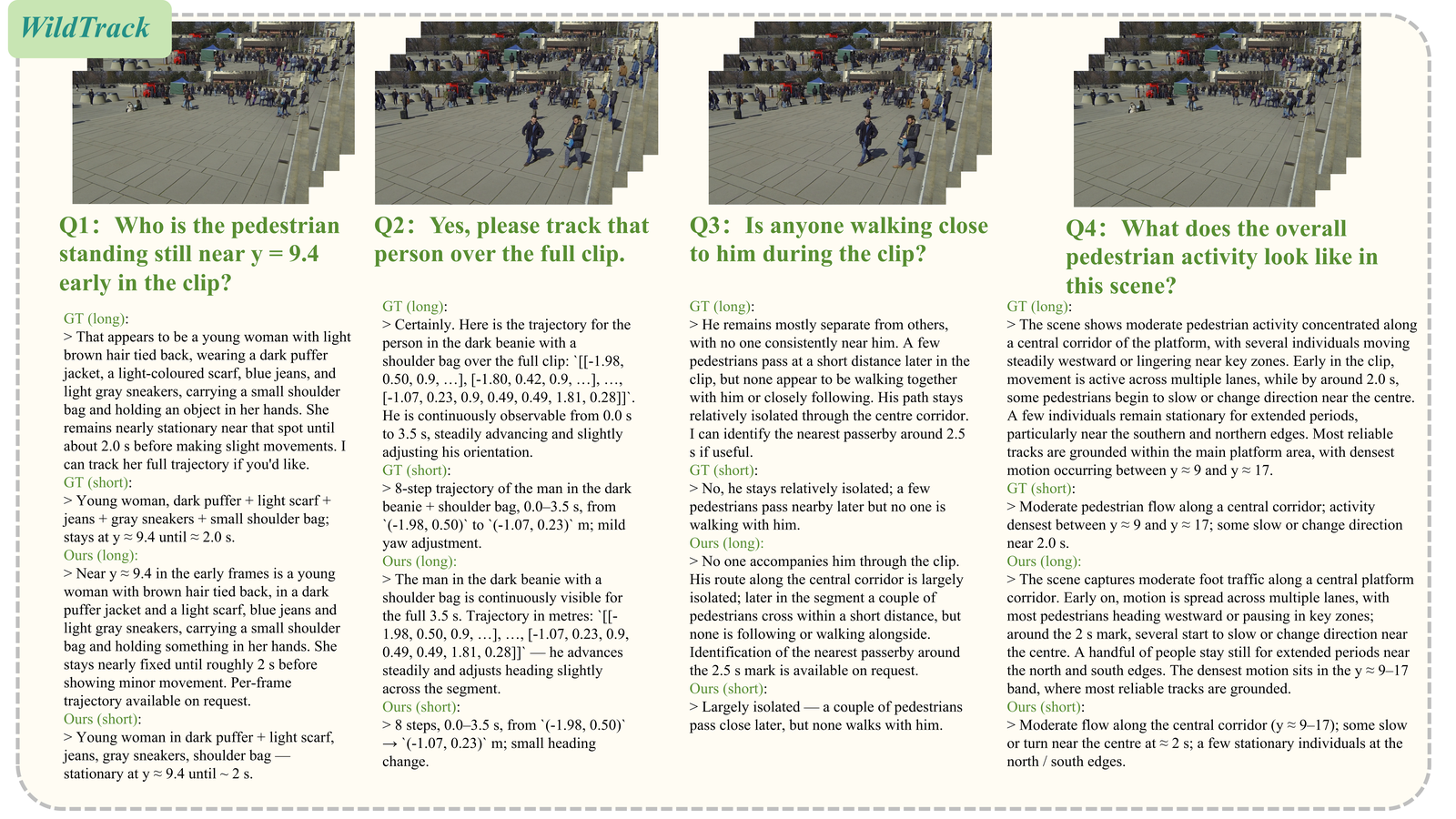

Qualitative example from WildTrack
Qualitative example from WildTrack in a crowded multi-view pedestrian scene, requiring target-identity tracking and spatial continuity under overlap and viewpoint variation.

BibTeX

@article{li2026lmmtrack4d,
  title={LMM-Track4D: Eliciting 4D Dynamic Reasoning in LMMs via Trajectory-Grounded Dialogue},
  author={Chaoyue Li and Yongxue Xu and Jie Feng and Jiayu Ding},
  journal={arXiv preprint arXiv:2605.19390},
  year={2026}
}
